Flex Connector Products

Smoothflo manufactures the Dura-Flex range of Flexible Duct Connector that provide an economical, air tight, high strength and extremely durable vibration and noise isolator joint in the ducting system, as well as allowing expansion and contraction of the ductwork run. The Dura-Flex range is available in a combination of two fabric types, three metal widths and two edge configurations.

All of our flexible connection is supplied in rolls of 30.5m.

Vinyl Flex Connector

Supplied ready for use in dispenser type cartons, the Dura~Flex range of flexible duct connectors offers a choice of fabric types  suited for use in even the harshest operating environments, and a range of metal widths to meet all commercial, industrial and residential requirements.

Metal 53mm – Fabric 100mm – Metal 53mm

CODE

FDCEVS

FDCEVN

DESCRIPTION

Econoflex Smooth Edge

Econoflex Notched Edge

UNIT

Roll

Roll

Metal 78mm – Fabric 100mm – Metal 78mm

CODE

FDCMVS

FDCMVN

DESCRIPTION

Metalflex Smooth Edge

Metalflex Notched Edge

UNIT

Roll

Roll

Metal 98mm – Fabric 100mm – Metal 98mm

CODE

FDCWVS

FDCWVN

DESCRIPTION

Wideflex Smooth Edge

Wideflex Notched Edge

UNIT

Roll

Roll

Metal 98mm – Fabric 100mm – Metal 53mm

CODE

FDCDVS

DESCRIPTION

Dual-Flex Smooth Edge

UNIT

Roll

Silicone Heavy Duty

Woven fibreglass base cloth coated with proprietary silicone rubber formulation. This fabric is almost completely inert, and offers extremely low flammability and smoke emission. With excellent performance in both high (up to 315°C) and low (-15°C) temperatures, the fabric offers excellent resistance to almost all chemicals, ozone, weathering, mildew and is highly recommended for all applications – a breakthrough in flexible duct connector technology.

CODE

FDCWSSHD

DESCRIPTION

Wideflex Silicone Smooth Edge

UNIT

Roll

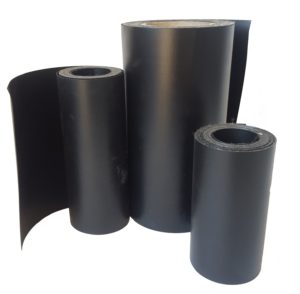

Flex Connector - Fabric Only*

Reinforced woven polyester based fabric coated with UV stabilised and flame retardant PVC coating. Other widths available on request, minimum order quantities apply. Sold per metre with a nominal roll length of 25m.

CODE

FABV130

FABV150

DESCRIPTION

Reinforced Vinyl Fabric 130mm Wide

Reinforced Vinyl Fabric 150mm Wide

UNIT

Roll
